The super-quiet pump now comes free with every AUTOTERM heater kit and installation (saves you £99).
Please note this kit does not come with ducting, vents or a mounting bracket.
2kW AUTOTERM Air 2D diesel heater kit (previously PLANAR 2D)
AUTOTERM water and air heaters are built to ISO 9001:2015 standards. They also have E2 R10 and E2 R122 approval for whole-vehicle approval for use in road vehicles.
Technical parameters:
- Heating power: 2 kW
- Fuel: diesel
- Voltage: 12V / 24V
- Heated air volume: low 34 m³/h — high 86 m³/h
- Power consumption: low 10 W — high 29 W
- Fuel consumption: low 0.10 l/h — high 0.24 l/h
- Weight: 2.9 kg
- Heater dimensions: 310mm × 119mm × 145mm
- Application: vans, campers, trucks, off-highway vehicles, boats/yachts
- Control unit with high-altitude sensor
About the AUTOTERM Air 2D
The AUTOTERM Air 2D is the most compact diesel-powered air heater in the Air series. The heater unit draws fresh air from outside (or from a well-ventilated room) and heats it quickly, providing comfort and warmth even in low-temperature environments.
With a maximum output of 2 kW, it can heat an 86 m³ space hourly while maintaining your desired temperature. Thanks to its compact design, it is easy to install or retrofit in almost any land or marine vehicle, and is supplied with a full installation kit in either the 12V or 24V DC version.
Already reasonably priced, the Air 2D keeps running costs low thanks to excellent fuel economy — consuming only 0.24 litres of diesel per hour even at maximum power. All Air-series heaters use brushless induction motors for low noise, a long service life, and operation in extreme environments down to -45°C/-49°F.
AUTOTERM Air heaters can be controlled with various control panels or remotely via your iOS or Android smartphone (remote-control modem sold separately). It is a great choice for heating small truck cabins, commercial-vehicle cabins and cargo compartments, small campers, off-highway vehicles or boats up to 33 ft / 10 m.
Included in the kit:
- Fuel pump with mounting bracket

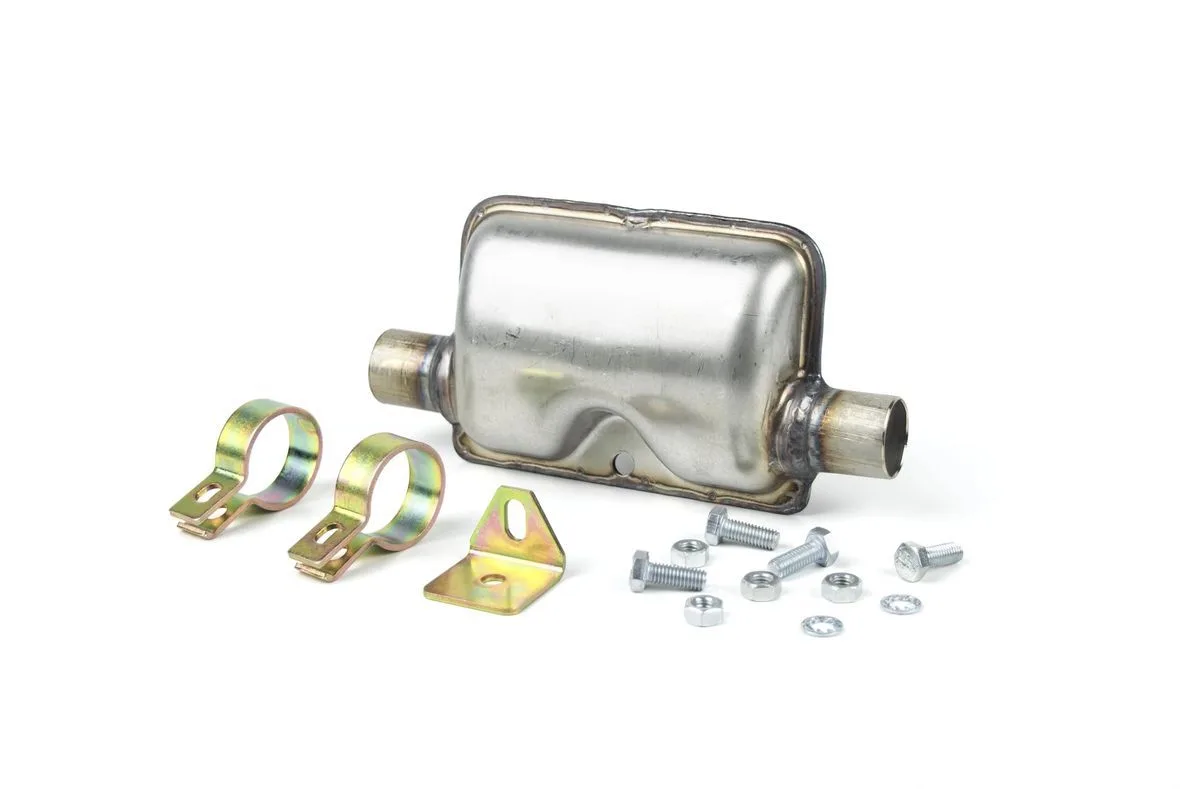

- 1 metre of exhaust with silencer

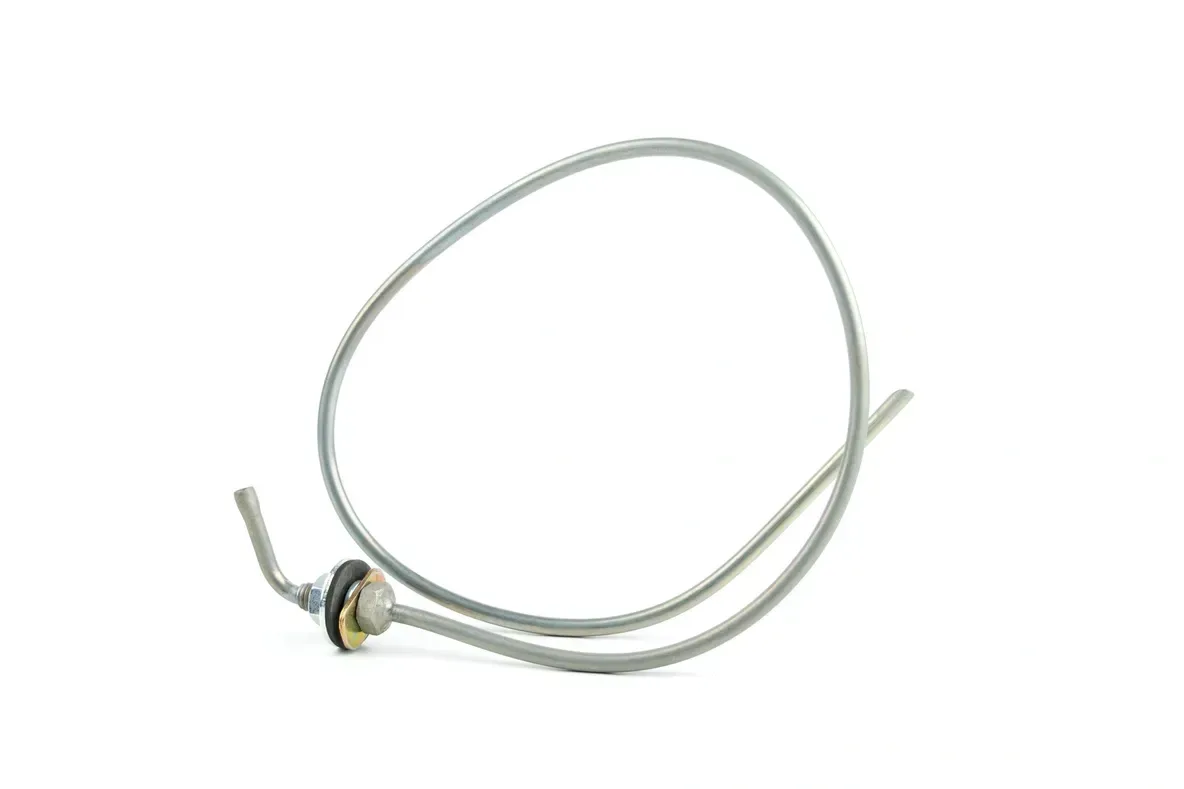

- 1 fuel dip tube and fuel line

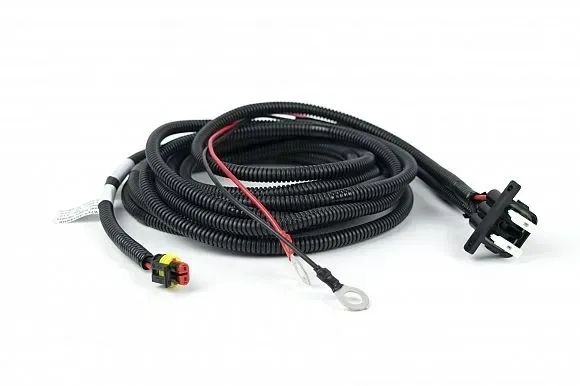

- 1 power cable with integral fuse box

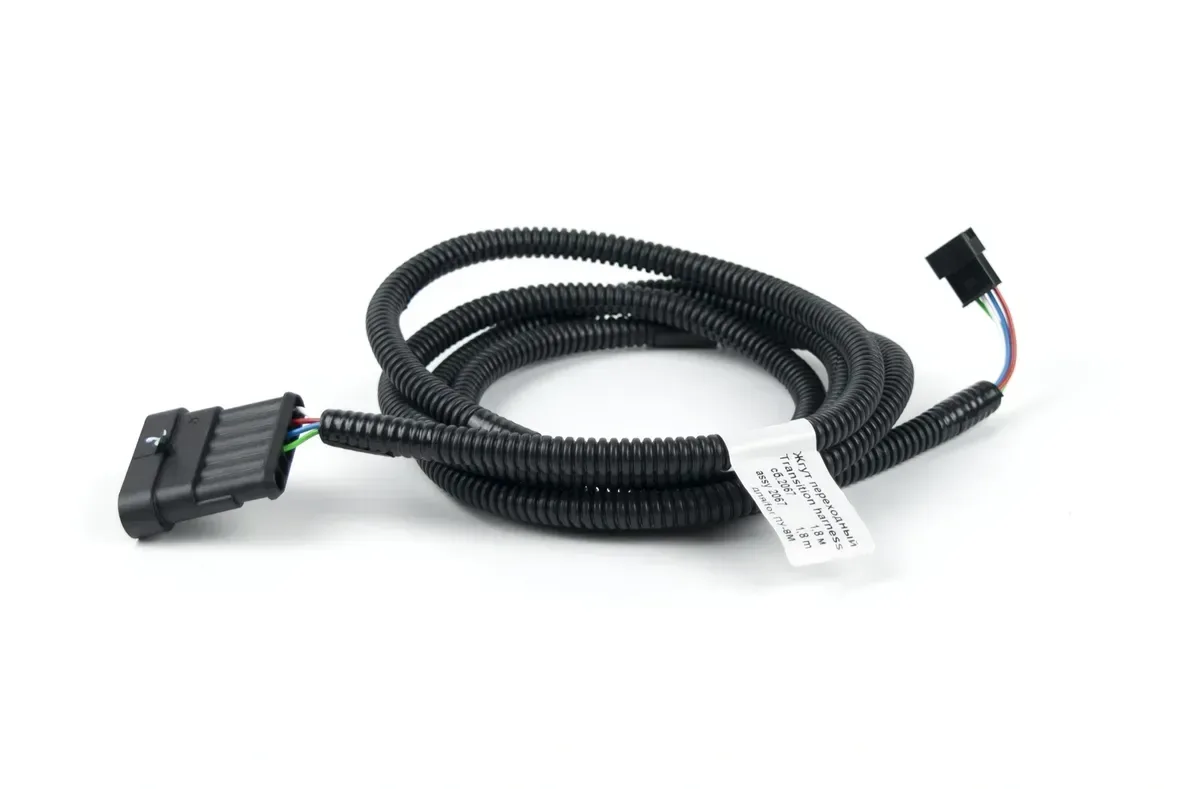

- 1 control panel cable
- 1 fuel pump power cable

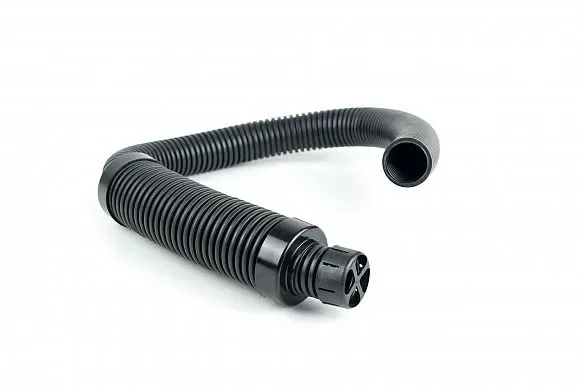

- 1 silencer air intake
- 1 exhaust heat lagging
- A selection of nuts and bolts
Click here for manuals and certificates.
Photos are representative and parts may be replaced with an equivalent at any time.
